Product Submittal: Please refer to the product submittal for additional details and important installation notes: Brazing Rings Submittal
• This product contains or produces a chemical known to the State of California to cause cancer and birth defects (or other reproductive harm).
• Store at normal room temperature in dry conditions.
• Use with proper brazing depths (refer to ASME B16.50 Table 1-3: Dimensions of Braze-Joint Ends), accounting for the depth of the brazing ring.
• Use with proper swage IDs per ASME B 16.50.
• Use ONLY with copper tubing from Reftekk or that is ASTM B280 certified.

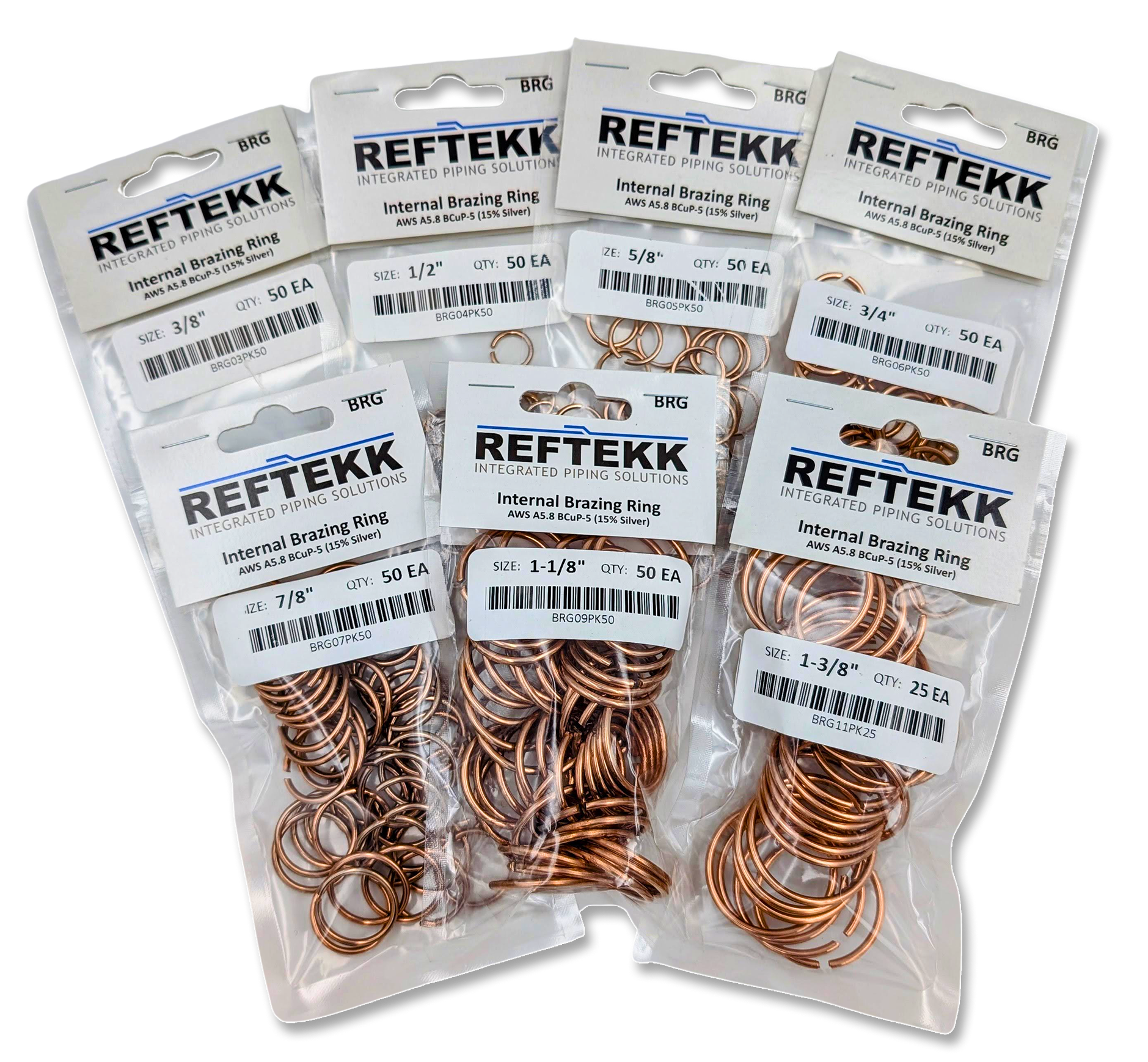

Brazing Rings create a high quality and repeatable joint while simplifying the brazing process and reducing waste. The correct amount of brazing material is used every time to create reliable joints.
Fewer Leaks: Brazing rings provide high filler penetration in the joint, reducing the amount of voids and leaks when compared to hand-fed brazing rod.
Repeatable: The brazed joint is visibly complete when the filler protrudes around the full circumference of the outside of the joint. This gives the operator a repeatable visual indicator of a completed brazed joint.
Simple Brazing Process: The brazing ring is inserted inside the joint prior to heating, freeing one of the operator’s hands and eliminating the guesswork of how much brazing rod to use.
Reduces Brazing Material: Preformed rings provide the right amount of filler material for each size connection, eliminating guesswork as to how much brazing rod to use - This results in reduced material costs.
Double Fillets: Fillets form on both the inside and outside of the brazed joint, indicating full-depth filler penetration. This results in a consistently high-quality connection as opposed to the questionable penetration depth when hand-feeding brazing rod.
